Used AP Americas M-CDC Compact EMC Chamber


Rare pre-owned compact EMC chamber for pre-compliant FCC/CISPR emissions and immunity testing available for sale. Mint condition, currently dismantled and ready for relocation.

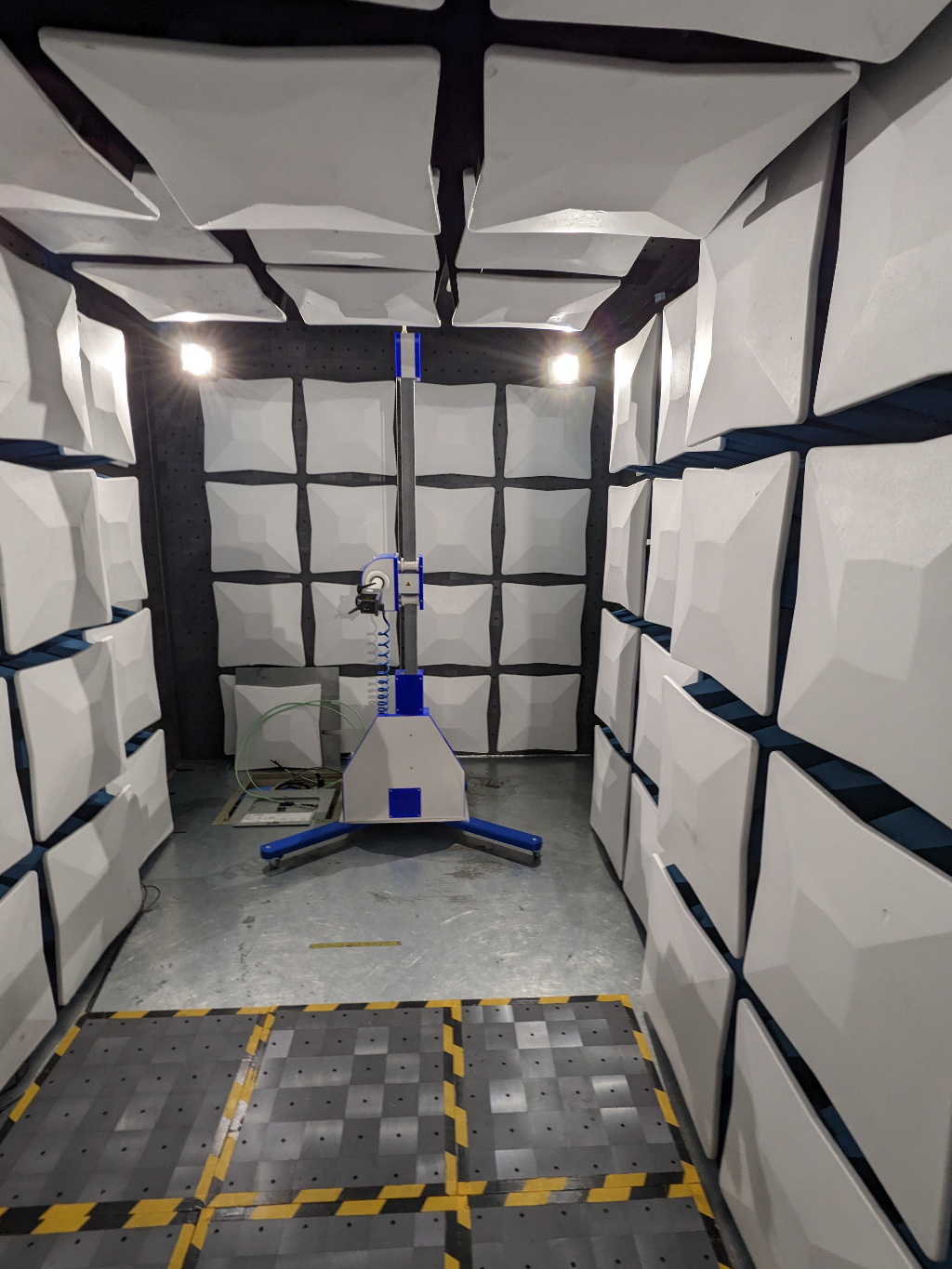

Mint condition M-CDC compact chamber manufactured by AP Americas. The chamber was originally built in 2016/2017 and has been lightly used.

Comes with a 1.0m floor mount Maturo turntable in addition to a 2.0m automated antenna mast (with controller). Also comes with 2 antennas. Everything required to get up and running with accurate EMI measurements.

Key Features

  • Radiated Emission 30 MHz – 18 GHz pre-compliant
  • Radiated Immunity 26 MHz – 18 GHz
  • 1.0m quiet zone
  • 1.0m floor mount turntable with non conductive support table. 100kg load capability
  • 1.0m to 2.0m automated antenna mast with pneumatic polarization control and controller
  • Microwave absorber treatment on all wall and ceiling surfaces
  • Full ferrite coverage on walls and ceiling
  • One 4x26A power filter
  • Original drawings available

Chamber Dimensions

Outer Dimensions (L x W x H):

Estimated overall external chamber dimensions of 23’11” x 10’2″ x 10’6″

Test Equipment

Included equipment:

  • Maturo CAM2.0-P Automated Mast
  • Maturo TT1.0-PF Automated Turntable
  • ETS Lindgren Bicon Antenna (30 MHz – 300 MHz)
  • ETS Lindgren Log-periodic Antenna (200 MHz – 1 GHz)



Relocation & Installation

We offer installation of this chamber within USA, Canada or Mexico. Full installation services provided.

If you would like to discuss this chamber with us, please email [email protected].
