Great opportunity to acquire a pre-owned compact EMC chamber in mint condition.

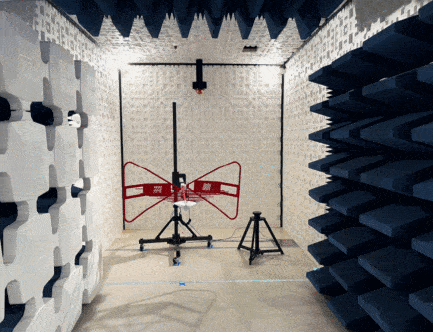

This facility was originally installed in 2017 and has been very lightly used (see pictures). Comes with a 6″ raised floor allowing for convenient cabling routing below the 1000 kg rated turntable.
This is a compact, multi-purpose test chamber design for radiated emissions and radiated immunity testing. Useful for testing according to (but not limited to): CISPR 11, 16, 22, 32, FCC Part 15/18, ANSI C63.4, ANSI C63.10, ETSI 30149, EN61000-4-3 and more.
Currently located in Washington State, and available for installation within Canada, USA, and Mexico.
Key Specifications
- ETS Lindgren Spacesaver compact semi-anechoic chamber
- 6″ raised floor
- Single-leaf 4′ x 7′ manually operated ETS Lindgren shielded door
- 1.5 m diameter turntable with a 1,000 kg distributed load capacity
- Full ferrite coverage on walls and ceiling
- Specular absorber treatment on wall and ceiling surfaces
- EMI hardened CCTV
- Several UL listed power filters
- 2x halogen corner light fixtures
- Connector filter panel
- Original drawings available upon request
Absorber Treatment
- Full coverage (walls and ceiling) with ferrite panels
- Specular coverage with FerroSorb polyurethane absorber
- 16 pieces of removable FerroSorb + Ferrite floor tiles for radiated immunity testing
Chamber Dimensions
Internal Dimensions (L x W x H):
7.57 m x 3.05 m x 3.05 m (24’10” x 10′-0″ x 10′-0″) Internal shield to shield (measured above the raised floor)
Outer Dimensions (L x W x H):
7.75 m x 3.23 m x 3.45 m (25’5″ x 10’7″ x 11’4″) Exterior including structural frame
Support Equipment
Included equipment:
- 1.5 m diameter turntable with a 1,000 kg distributed load capacity
- TR-7 Antenna Mast
- ETS Lindgren EMI hardened CCTV (Model 4340)
- ETS Lindgren 3142E BiConiLog Antenna (30 MHz – 6 GHz)
- ETS Lindgren 3115 Horn Antenna (750 MHz – 18 GHz)
- ETS Lindgren Mast/Turntable Controller
Relocation & Installation
We can relocate this chamber within USA, Canada or Mexico. Full installation services provided.
If you would like to discuss this chamber with us, please email [email protected].
