Great opportunity to acquire a pre-owned compact EMC chamber.
This is a compact, pre-compliance, multi-purpose test chamber design for radiated emissions and radiated immunity testing. It’s useful for testing according to (but not limited to): CISPR 11, 16, 22, 32, FCC Part 15/18, ANSI C63.4, ANSI C63.10, ETSI 30149, EN61000-4-3 and more.
Key Specifications
- Panashield compact semi-anechoic chamber
- Raised floor
- Single-leaf 4′ x 7′ manual shielded door
- 1.5 m diameter turntable (optional 2m upgrade available)

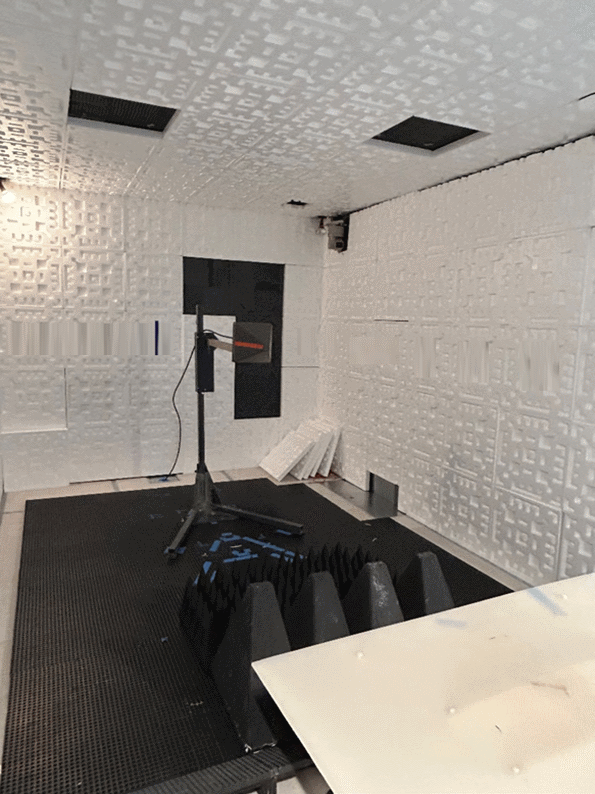

- Full ferrite coverage on walls and ceiling
- Specular absorber treatment on wall and ceiling surfaces
Absorber Treatment
- Full coverage (walls and ceiling) with ferrite panels

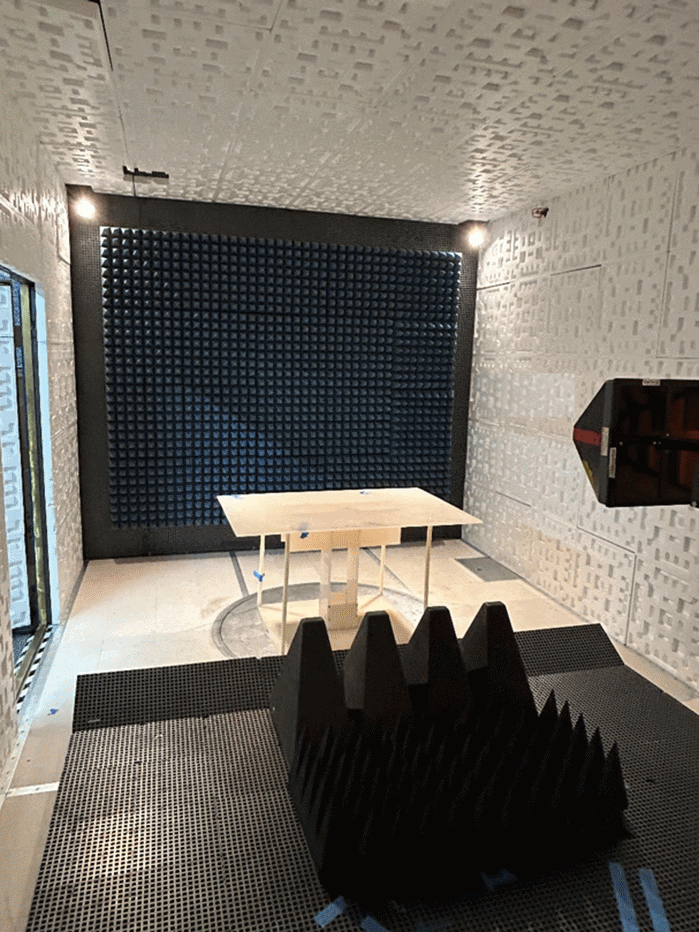

- The chamber will be refurbished with specular coverage of brand new RF absorber (areas on walls, ceiling, and turntable end wall)
- Patch of removable floor absorber for radiated immunity testing included
Chamber Dimensions

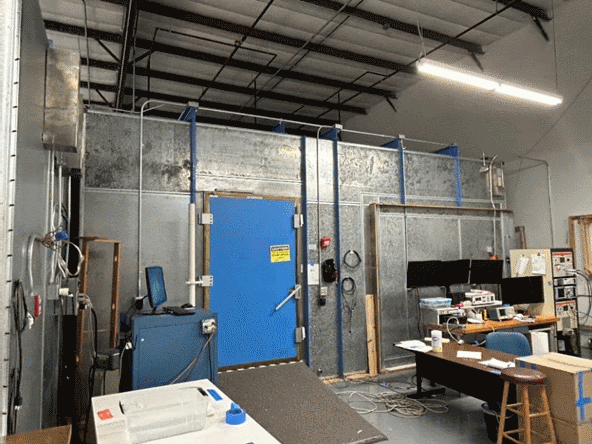

Outer Dimensions (L x W x H) – Approximate – To Be Confirmed:
(23’6″ x 13′ x 12′) Exterior including structural frame
Support Equipment
Included equipment:
- 1.5 m diameter turntable & controller (optional upgrade to 2m at cost)
Relocation & Installation
Currently located in Florida State, and available for installation within Canada, USA, and Mexico.
Full installation services provided.
If you would like to discuss this chamber with us, please email [email protected].
