EMSCAN RFX2 Antenna Analyzer [In Stock]


Near-field scanner for rapid antenna characterization and development.

  • Accurate EIRP and TRP measurements
  • 2D and 3D NF patterns (amplitude, phase and polarization)
  • Graph S11
  • Calculate gain and efficiency

Note: This unit is available for monthly rental only. Available in USA and Canada only.

Rental package includes:

  • EMSCAN RFX2 Antenna Pattern Measurement Scanner (6 GHz Model)
  • Laptop with pre-loaded software
  • Optional VNA

The RFX2 is a desktop scanner that characterizes antennas without the need for a chamber. RFX2 provides far-field patterns, bisections, EIRP and TRP in seconds. Novel near-field results, including amplitude, polarity and phase give insights into the root causes of antenna performance challenges and help troubleshoot far-field radiation patterns.

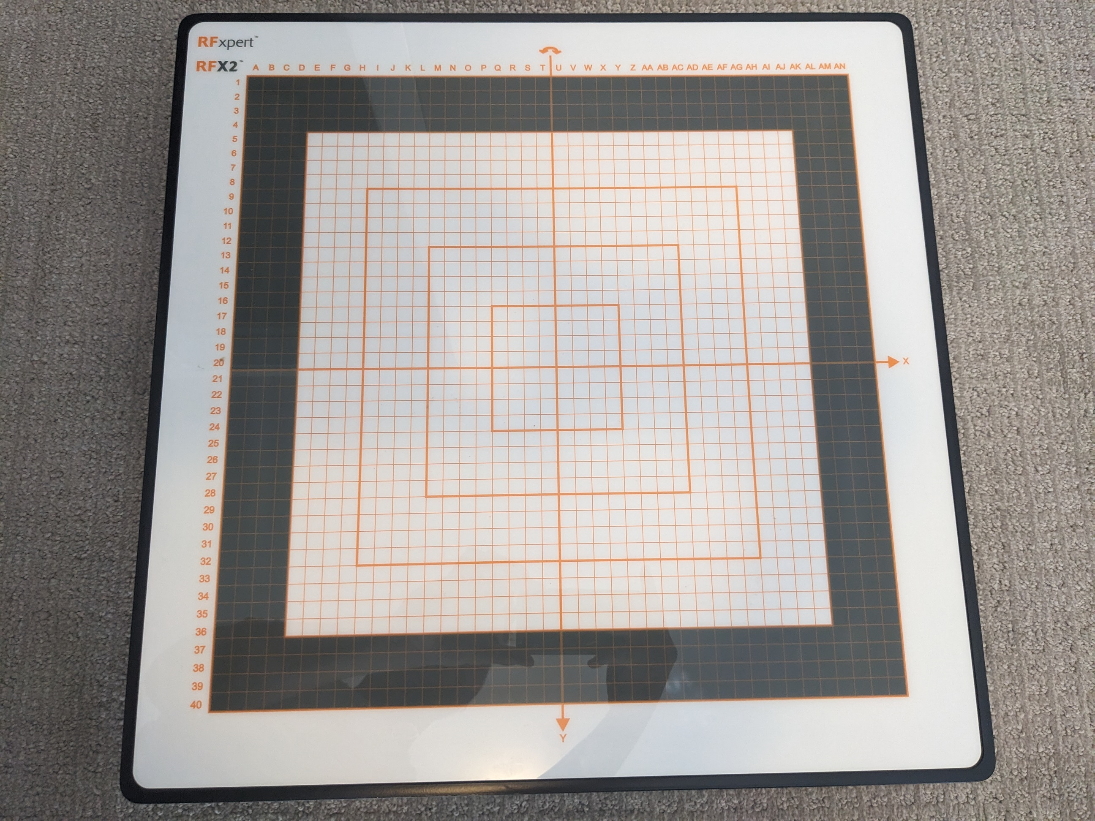

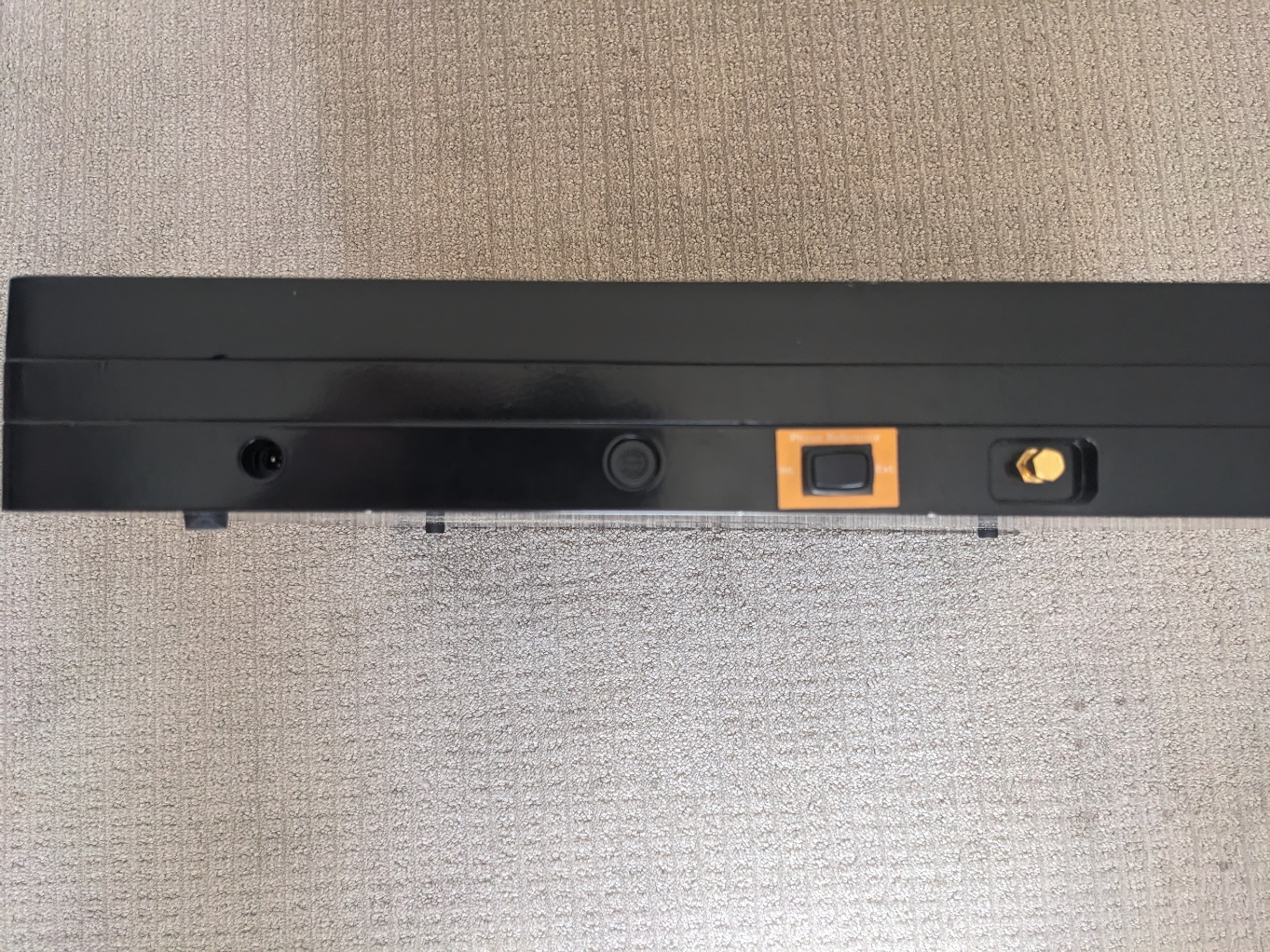

Large scan area allows designers to test antennas up to 32 cm * 32 cm (12.60″ * 12.60″) e.g. notebooks, laptops. RFX2 can also integrate with a network analyzer to measure gain, efficiency and S11 of an antenna, and with a base station emulator to test cell phones. Users can execute real-time analysis of their embedded antenna designs and test multiple design iterations, on the lab bench, in seconds at each stage of the design process.

RFX2 also gives wireless engineers the freedom to do rapid prototyping and explore new designs, new materials and new forms. Wireless engineers and designers can test multiple design variations and optimize complex embedded antenna designs at their desktop in seconds without wasting timewaiting in congested anechoic chamber lines. They can optimize positioning and effects from layout, monitor changes from packaging or layout changes or verify performance of final product in seconds and then go to the chambers for final certification requirements with their mind at ease, knowing that their design will achieve a first-time pass.

With the Circular Polarization (CP) option, the RFX2 calculates the right and left hand circularly polarized patterns and displays axial ratio patterns. RFX2 can be integrated into virtually any automated test bed and production line by using DLL programming. As a golden sample comparison tool with real-time results, the RFX2 is also ideal for sample lot testing and product verification for wireless service providers or for manufacturing support.

RFX2 allows design teams to reduce testing time by at least one order of magnitude. Users have also documented fifty percent reductions in design cycle times. RFX2 provides antenna designers and wireless engineers with an easy-to-use, cost-effective, and proven tabletop solution.

With its real-time capability, RFX2 is a perfect tool to improve the design process for manufacturers of cellular, GPS, WiFi, RFID, Bluetooth, LTE,MIMO, custom and medical devices.



Antenna measurement system OTA EIRP TRP
