TekBox Near Field Probe Set (TBPS01)


Low cost near field probe set for EMC/EMI troubleshooting.

$199.00

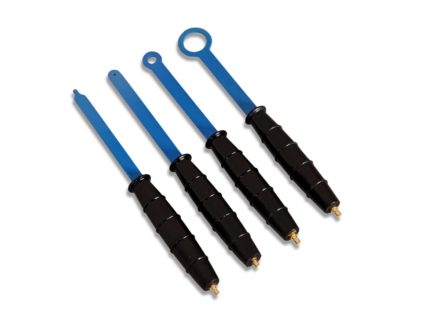

This handy near field probe set is useful primarily for troubleshooting radiated emissions failures at the circuit board level. With 2x magnetic field (H) probes and 2x electric field (E) probes you can track down noise sources to individual PCB tracks, IC pins or any other features that are sources of electro-magnetic radiation.

The various sizes allow you to balance sensitivity (locating very small signals) with resolution (isolating exactly which tracks, pins or features are creating the noise).

The probes can also be used to test how susceptible your PCBs and cables are to radiated fields. So if your product has failed radiated immunity testing (61000-4-3) then you can use a signal generator connected to these probes to generate fields in the order of >10 V/m.

Every set includes a SMB to SMA cable (0.75m)



User Manual

Weight .6 kg
Dimensions 29 × 18 × 7 cm
