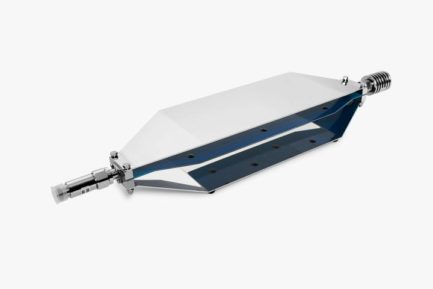

TekBox Compact TEM Cell (TBTC0)


$449.00

This TEM cell is great for radiated emissions and immunity pre-compliance testing and troubleshooting on your desktop.

It won’t give you absolute measurements as you’d find at an open area test site (OATS) or in a semi-anechoic chamber (SAC), but it’s great for several things:

  • Fast radiated emissions troubleshooting. Make relative measurements to verify the improvements of PCB and/or component changes.
  • Compare the emissions performance of parts from several vendors (again, relative measurements).
  • Feed in a signal from a signal generator (via a small RF amplifier) to generate significant field strengths. This is great for radiated immunity pre-compliance testing and troubleshooting.
  • Compare emissions and immunity performance of different PCB revisions

Chances are that this device can save you many expensive days in a 3rd party test lab.

All TEM cells are supplied together with a 50Ω/25W RF termination, a DC block to protect the spectrum analyzer or RF receiver input and an N-Male to N-Male coaxial cable.



Category:

Tekbox_TEM_Cell_Manual

TEM Cell FAQ

EMC Pre-Compliance Testing Guide

Weight1.5 kg
Dimensions45 × 16 × 11 cm
Frequency Range

DC to 3 GHz

Max Input Power (W)

10

Septum Height

2.8 cm
