Used Semi-Anechoic Chamber

Out of stock

Description

Installed new in 2012 and professionally dismantled in 2018 – this package is in mint condition.

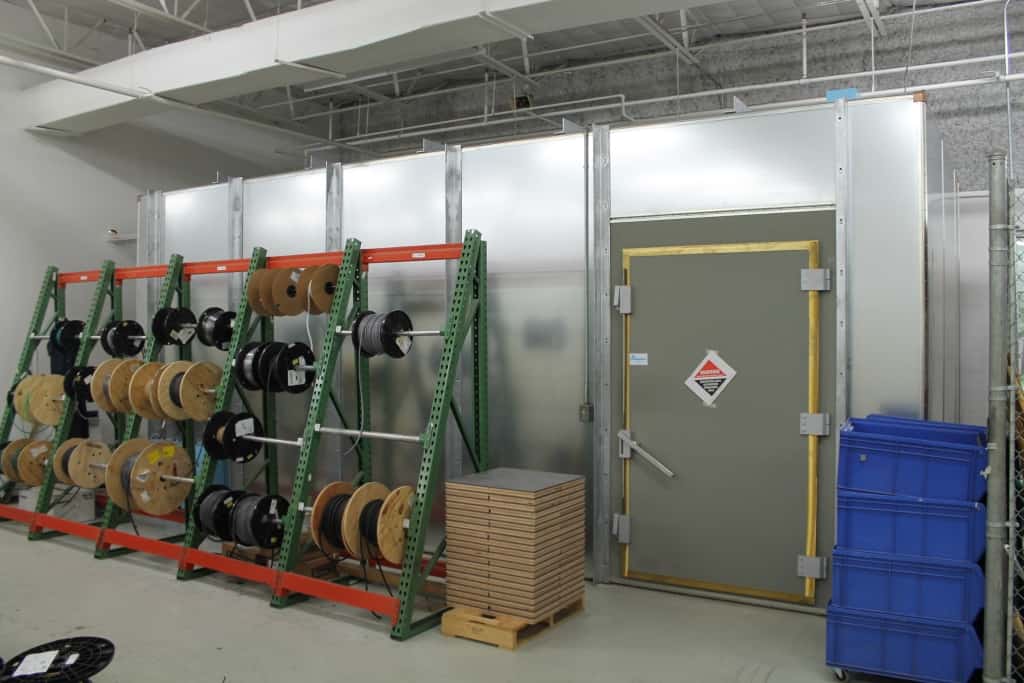

Used compact Panashield 1024 semi-anechoic chamber for sale.

EMC test equipment also for sale (see details below) for ESD, radiated immunity, EFT, surge and conducted immunity.

These economical compact chambers are a popular choice for manufacturers who want to make pre-compliance radiated emissions measurements and full-compliance radiated immunity testing in-house.

The chamber is designed to perform ANSI C63.4/CISPR 16-1-4 and IEC 61000-4-3 fully compliant radiated immunity measurements.

It is also used for pre-compliant radiated emissions measurements. Full NSA data available, showing accuracy of +/- 6dB.

Frequency ranges for this chamber are 26 MHz to 6 GHz (radiated immunity) and 30 MHz to 18 GHz (radiated emission).

See ‘Documentation’ tab for NSA survey data and construction drawings.

Package Contents

  • All Panabolt™ shielding panels, framing and fasteners for a complete self-supported enclosure
  • Full treatment of Ferrite Tile and HYB-NF-12 Absorber on the EUT end wall and specular patches on the side walls
  • Removable floor treatment (10’ x 11’) of ferrite panels for EN 61000-4-3
  • One (1) 4′ wide x 7′ high Single Leaf RCM Door with Phenolic Handle
  • Two (2) 12″ x 12″ Waveguide air vents with dielectric collars
  • Four (4) – 2-wire, 30 amp, power line filters for 50 Hz/60 Hz requirements
  • Six (6) 1’ by 1’ LED light panels with filtering.
  • One (1) 12″ x 12″ Brass Connector Panel
  • One (1) 1.0” waveguide pipe penetration
  • One (1) threaded brass ground stud
  • One WGF-6 Fiber Optic WG
  • Vinyl floor tile

Price does not include shipping or installation.

Chamber located in Texas.

If interested in this chamber, please contact me at andy@emcfastpass.com with any questions.

Additional EMC Test Equipment Available

All equipment was purchased new in 2012 and has been very lightly used (mint condition).

Manufacturer Model Description Price (USD)
Amplifier Research EM10123 Injection Clamp 10 kHz-1 GHz including calibration fixture (For EN/IEC61000-4-6) 12,000
Amplifier Research AF06250 250W 6 dB attenuator Sold
Amplifier Research  AF20050 50W 20 dB attenuator Sold
Amplifier Research AF10050 50W 10 dB attenuator Sold
Amplifier Research BP00250 Current Probe 1kHz-250MHz (monitor probe) 1000
Agilent Technologies N9010A Spectrum Analyzer-EXA series Sold
Amplifier Research SG1200 Signal Generator 9 kHz-1.2 GHz Sold
Amplifier Research PM2003 Power Meter 10 kHz-40 GHz Sold
Amplifier Research SC1000M RF Switch Controller Sold
Amplifier Research 75A250AM1 RF Amplifier-10kHz-250MHz, 75 Watts (For EN/IEC61000-4-6) 13,000
Amplifier Research DC2600A Dual Directional Coupler  10 kHz – 250 MHz, 600 Watt Sold
Amplifier Research PH2000 RF Power Head Sold
Amplifier Research TL50050 RF Load DC-18GHz, 50 Watts 500
Amplifier Research CD20032 Coupling/Decoupling Network for 2 Supply Lines, 32 Amp 5,000
Amplifier Research CDN S9 Coupling /Decoupling Network for 9 Screened Cables 3,000
Amplifier Research CD50032 Coupling / Decoupling Network for 5 Supply Lines (3 Phase with Neutral and PE), 32 Amp 5,000
Amplifier Research CD40032 Coupling / Decoupling Network for 4 Supply Lines (3 Phase with Neutral), 32 Amp 5,000
Amplifier Research CD30032 Coupling / Decoupling Network for 3 Supply Lines, 32 Amp 5,000
Amplifier Research 150W1000M3 RF Amplifier-80MHz-1000MHz, 150 Watt 20,000
Amplifier Research DC6080A Dual Directional Coupler 80 – 1000 MHz, 500 Watt 1,000
Amplifier Research FM7004 RF Field Monitor Sold
Amplifier Research FI7000 Laser Probe Interface Sold
Amplifier Research ATR80M6GM4 RF Immunity Antenna Sold
Amplifier Research FL7006 Laser Powered Field Probe Sold
Haefely Test AG PEFT4010 EFT Generator including capacitive coupling clamp, 60dB/54dB verification attenuators (For EN/IEC61000-4-4) 9,995
Haefely Test AG IP4A Capacitive Coupling Clamp
Haefely Test AG FP-EFT 32M 3 Phase Coupling/Decoupling Network (CDN) for PEFT4010  4,000
Haefely Test AG PSURGE4010 Combination Wave Surge Generator (For EN/IEC61000-4-5) 17,000
Haefely Test AG FP-Surge 32.1 3 Phase Coupling/Decoupling Network (CDN) for PSURGE4010  18,000
Haefely Test AG ONYX16 ESD Simulator 16 kV 4,500
