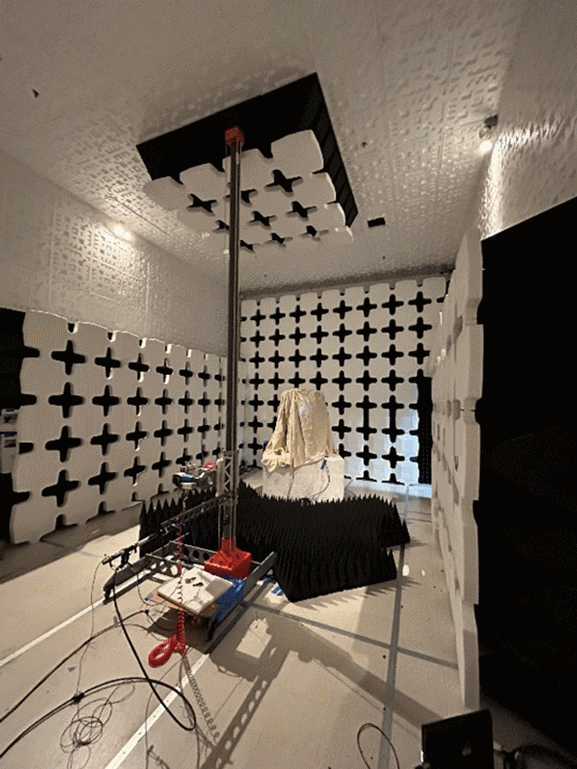

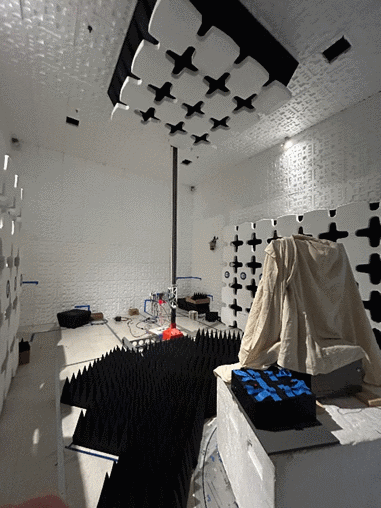

Panashield’s 3 meter EMC anechoic chamber provides a test facility for performing full compliance radiated emissions and radiated immunity testing to various international standards.
This proven design has excellent measured results within the required +/-4 dB NSA levels specified in ANSI C63.4 and EN50147 part 2 (emissions) and is also fully compliant for EN61000-4-3 (immunity). The chamber is self-supporting and constructed using the versatile Panabolt modular panel RF shielding system and provides a high level of shielding integrity.
The chamber is in excellent condition and is being removed from a working 3rd party compliance lab due to site closure.
Key Features
- Radiated Emission 30 MHz – 18 GHz Compliant
- Radiated Immunity 26 MHz – 18 GHz Compliant (with floor absorber)

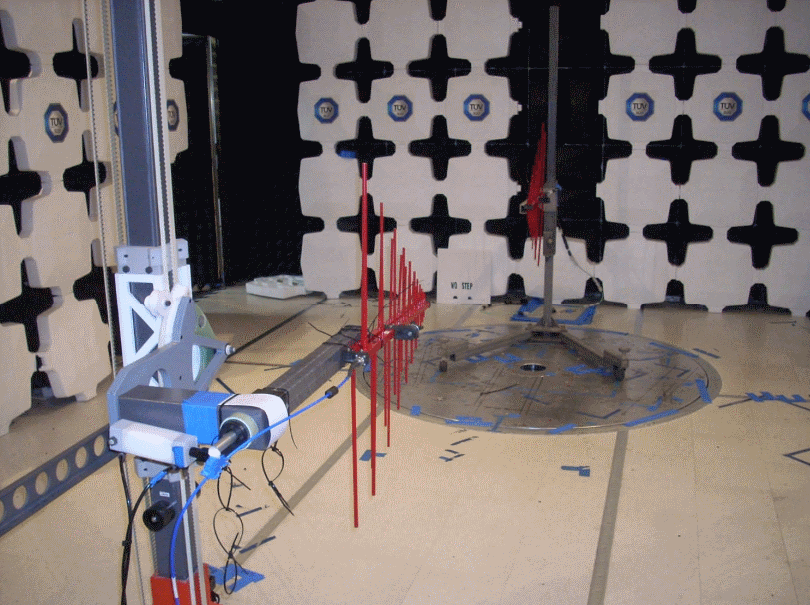

- NSA and sVSWR qualification reports available
- 2m quiet zone
- FCC and CISPR compliant test site

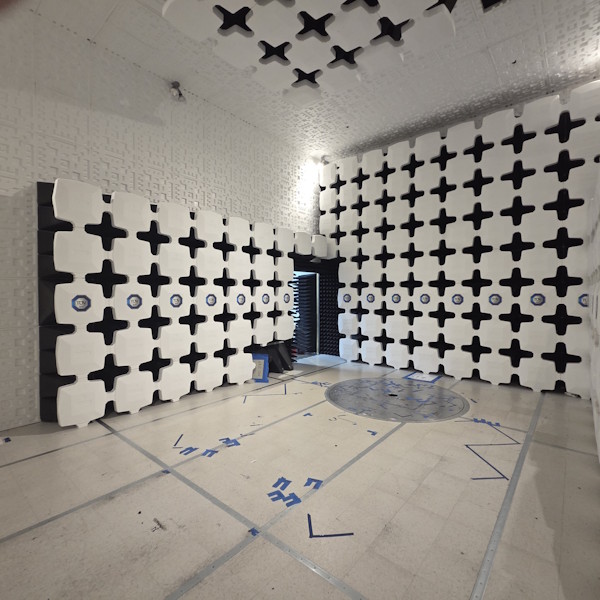

- Turntable

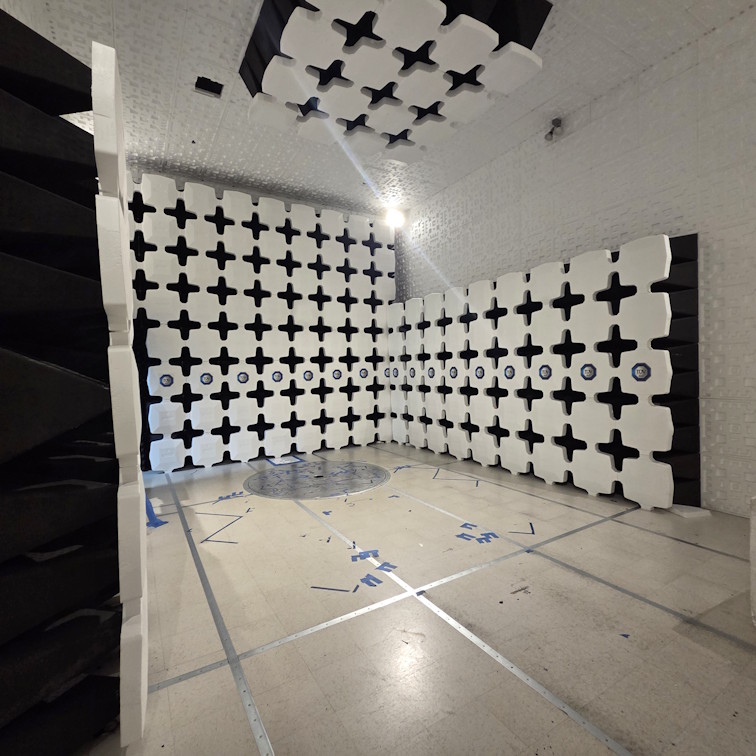

- Hybrid absorber specular treatment on walls and ceiling surfaces
- Full ferrite coverage on walls and ceiling
- Chamber designed for certification with normalized site attenuation per FCC, Part 15, 3 m measurements
- Testing in accordance with IEC61000-4-3, EN 50147-2 and ANSI C63.4 from 30 MHz to 18 GHz for radiated emissions and immunity testing
Chamber Dimensions
Outer Dimensions (L x W x H) – Approximate – To Be Confirmed:

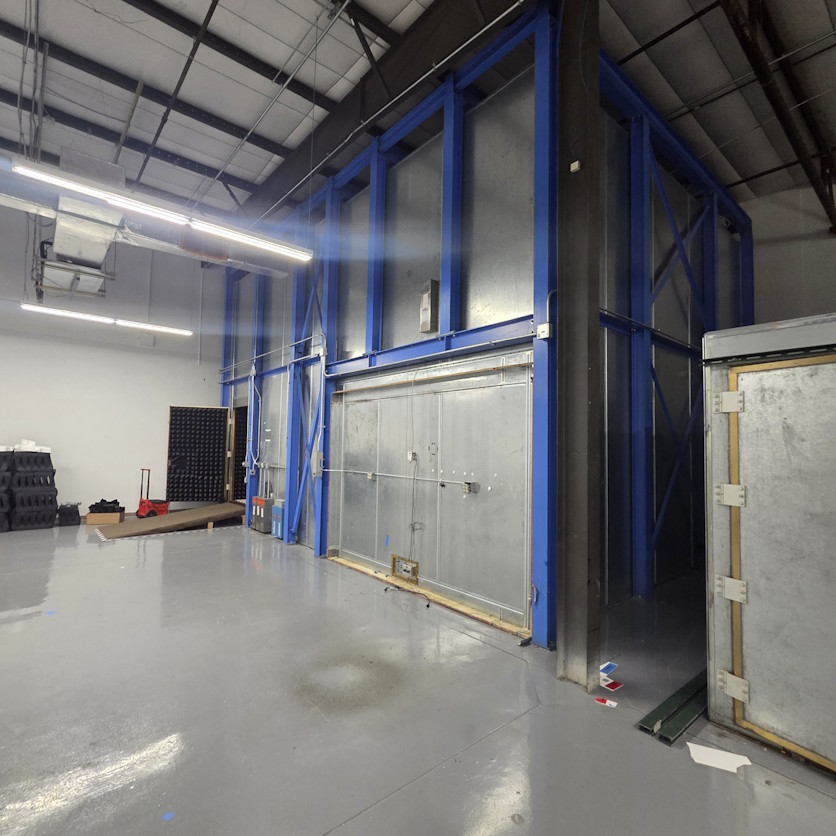

8.7 x 6.1 x 5.5 m (28’9” x 19’11” x 18’1”) Exterior with structural frame
Relocation & Installation
We can relocate this chamber within USA, Canada or Mexico. Full installation services provided.
If you would like to discuss this chamber with us, please email [email protected].
